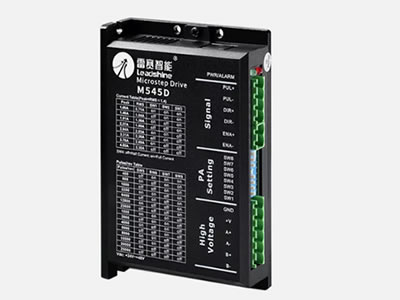

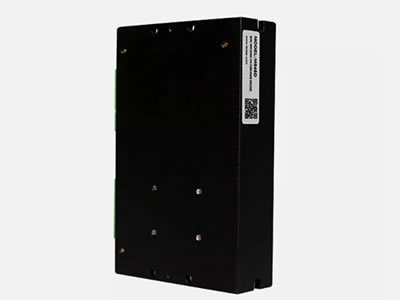

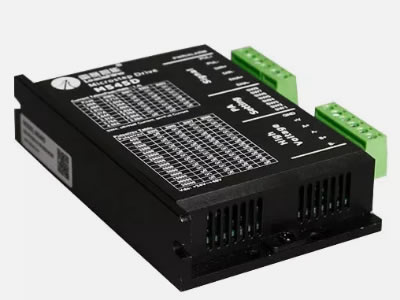

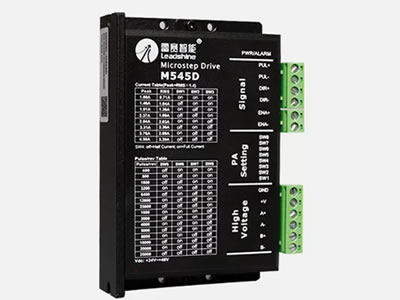

Leadshine DM545D Stepper Motor Driver
1.Extra-low motor noise offers excellent quietness
2.Anti-Resonance, provides optimum torque and nulls mid-range instability
3.upply voltage up to +40 VDC .
This Products is available in stock.
This Products is available in stock.
This Products is available in stock.
we will ship the package within 48 hours after the buyers pay momey by paypal
it is made in China Shenzhen Leadshine Technlogy Co.,Ltd ,100% original,
The Leadshine DM545d is a versatility fully digital stepping drive based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The Self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives in the markets. Its unique features make the DM545d an ideal solution for applications that require low-speed smoothness.
Features:
Extra-low motor noise offers excellent quietness
Anti-Resonance, provides optimum torque and nulls mid-range instability
Self-test and Auto-configuration technology, offers optimum responses with different motors
Microstep resolutions programmable, from full-step to 102,400 steps/rev
Supply voltage up to +40 VDC
Output current programmable, from 0.5A to 3.2A
Pulse input frequency up to 200 KHz
Automatic idle-current reduction
Supports PUL/DIR and CW/CCW modes.
Electrical Specifications (Tj = 25oC/77oF)
