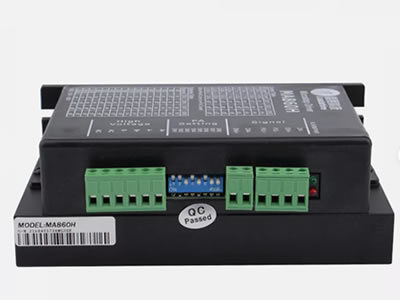

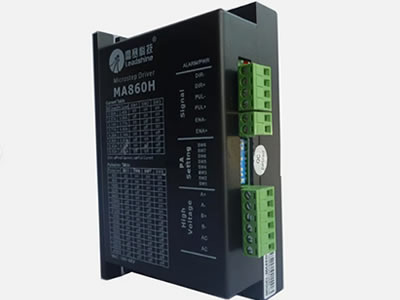

Leadshine MA860H Stepper Motor Driver
1.Good high speed performance.
2.Output voltage is Max. 80VAC
3.Output current is Max. 7.2A.
This Products is available in stock.
This Products is available in stock.
This Products is available in stock.
we will ship the package within 48 hours after the buyers pay momey by paypal
it is made in China Shenzhen Leadshine Technlogy Co.,Ltd ,100% original,
Leadshine MA860H is a high performance microstep driver based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different stepper motors, the driven motors can run with smaller noise, lower heating, smoother movement. It is suitable for driving 2-phase and 4-phase Nema motors.
Features:
1) Good high speed performance
2) Output voltage is Max. 80VAC
3) Output current is Max. 7.2A
4) Self-adjustment technology
5) Pure-sinusoidal current control technology
6) Pulse input frequency is up to 300 KHz
7) TTL compatible and optically isolated input
8) Automatic idle-current reduction
9) 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
10) Suitable for 2-phase and 4-phase motors
11) Support PUL/DIR and CW/CCW modes
12) Short-voltage, over-voltage, over-current and short-cicuit protection
Wiring diagram of MA860H leadshine driver
